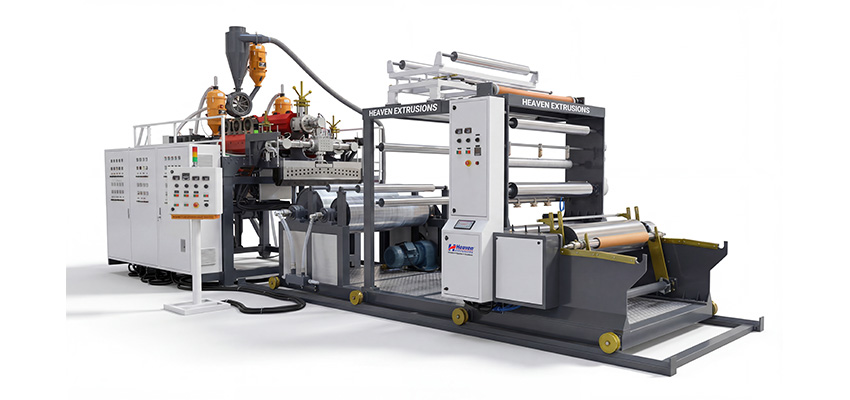

Cast Stretch Film Extrusion Line
Premium 2-Layer & 3-Layer Co-Extrusion Solutions
Heaven Extrusions Cast Film Extrusion Lines are engineered to deliver world-class film quality, consistent thickness, and high-speed productivity for industrial, packaging, and lamination applications. Available in 2-layer (A-B) and 3-layer (A-B-A / A-B-C) configurations, these lines combine robust mechanical design, advanced extrusion technology, and smart automation to maximize output and reduce operational costs.
Why Heaven Cast Film Lines?
Heaven Extrusions provides an end-to-end, integrated production solution for PP / HDPE Raffia Woven Sack manufacturing. From raw material processing to finished bag conversion, every stage is engineered for high efficiency, durability, and consistent output quality.
Consistent Film Quality :
Mirror-finish chill rolls & melt pump technology ensure uniform thickness, optical clarity, & minimal defects.
High-Speed, High-Output :
Designed for continuous 24x7 operation, achieving maximum productivity with minimal energy consumption.
Smart Automation :
PLC + HMI controls, recipe memory, and process monitoring allow precision control of film width, thickness, and layer ratio.
Versatile Co-Extrusion Options :
2-layer or 3-layer co-extrusion enables barrier properties, lamination-ready films, and multi-functional packaging applications.
Minimal Waste, Maximum ROI :
Edge-trimming with recycling, automatic winder, and tension control optimize efficiency and reduce material loss.
Standard Features
- High-output screw & barrel
- Mirror chill roll (dual-zone cooling)
- Fully Auto winder unit
- Edge trim system + grinder
- Touchscreen HMI with full diagnostics
Optional Upgrades
- Co-Extrusion (A-B / A-B-A)
- Auto die lip control (ADC)
- Air knife for ultra-thin film
- Static removal system
- Inline surface treatment
- Jumbo roll winder options
Applications
- Flexible Packaging
- Lamination Grade PE Film
- Cling Film & Stretch Film
- Industrial Protection Film
- High Transparency Film
- Food & Pharma Packaging
Technical Specification
| Model | Screw Size(MM) | Die Width(MM) | Film Thickness Range (MICRON) | Max Line Speed (MPM) | Max. Melting Capacity (KG/HR.) | Total Connected Load(KW) |
|---|---|---|---|---|---|---|
| HSCFL/1000 | 55/70/55 | 1250 | 20 to 75 | 125 | 100 to 120 | 85 kw |
| HSCFL/1500 | 65/90/65 | 1750 | 20 to 75 | 125 | 140 to 180 | 120 kw |
| HSCFL/2000 | 70/100/70 | 2250 | 20 to 75 | 100 | 200 to 220 | 160 kw |
×
