PP / HDPE Raffia Woven Sack Bag Production Line

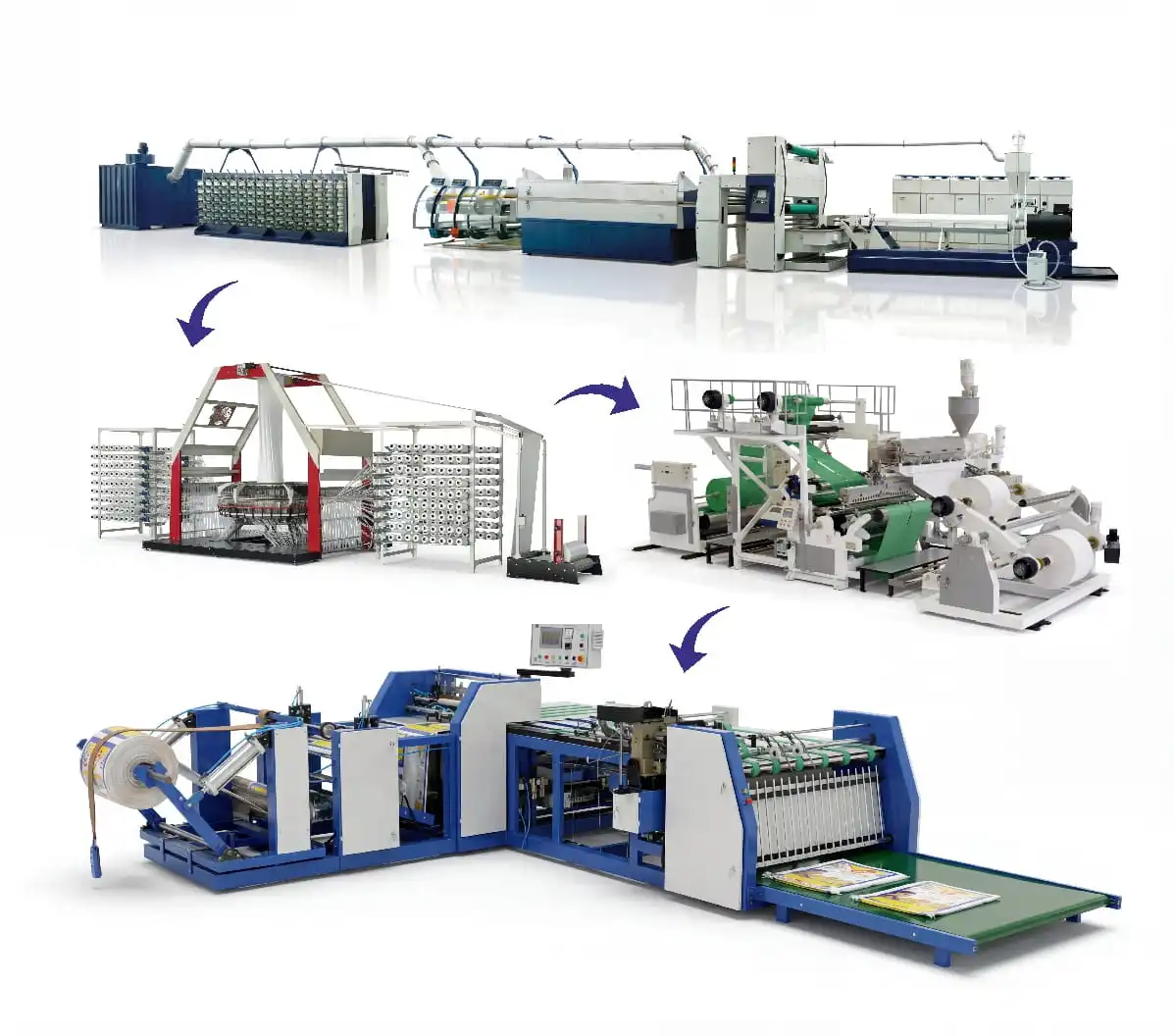

PP HDPE Raffia Woven Sack Bag Production Line Manufacturer - Raffia Tape Stretching, Circular Loom & Woven Sack Plant
PP HDPE Raffia Woven Sack Bag Production Line with Raffia Tape Stretching, Circular Loom and Bag Conversion System

PP / HDPE Raffia Woven Sack Bag Production Line

Heaven Extrusions manufactures advanced PP/HDPE Raffia Woven Sack Bag Production Lines engineered for the efficient production of high-quality woven sacks, bags, and tarpaulin fabrics. Our complete extrusion systems are designed to achieve excellent fabric strength, dimensional consistency, and reliable production performance while maintaining high operational efficiency.

WhatsApp Get Inquiry ▶ Watch Video
Technical Specification for Raffia Tape Stretching Line
Model Screw Size (MM) L/D Ratio Die Width (MM) Max. Melting Capacity (KG/Hr) Max. Line Speed (MPM)
HETSL – 65/150 65 32:1 800 125 – 150 250
HETSL – 75/200 75 32:1 900 170 – 200 300
HETSL – 85/250 85 32:1 1100 225 – 250 350
HETSL – 95/350 95 32:1 1300 315 – 350 380

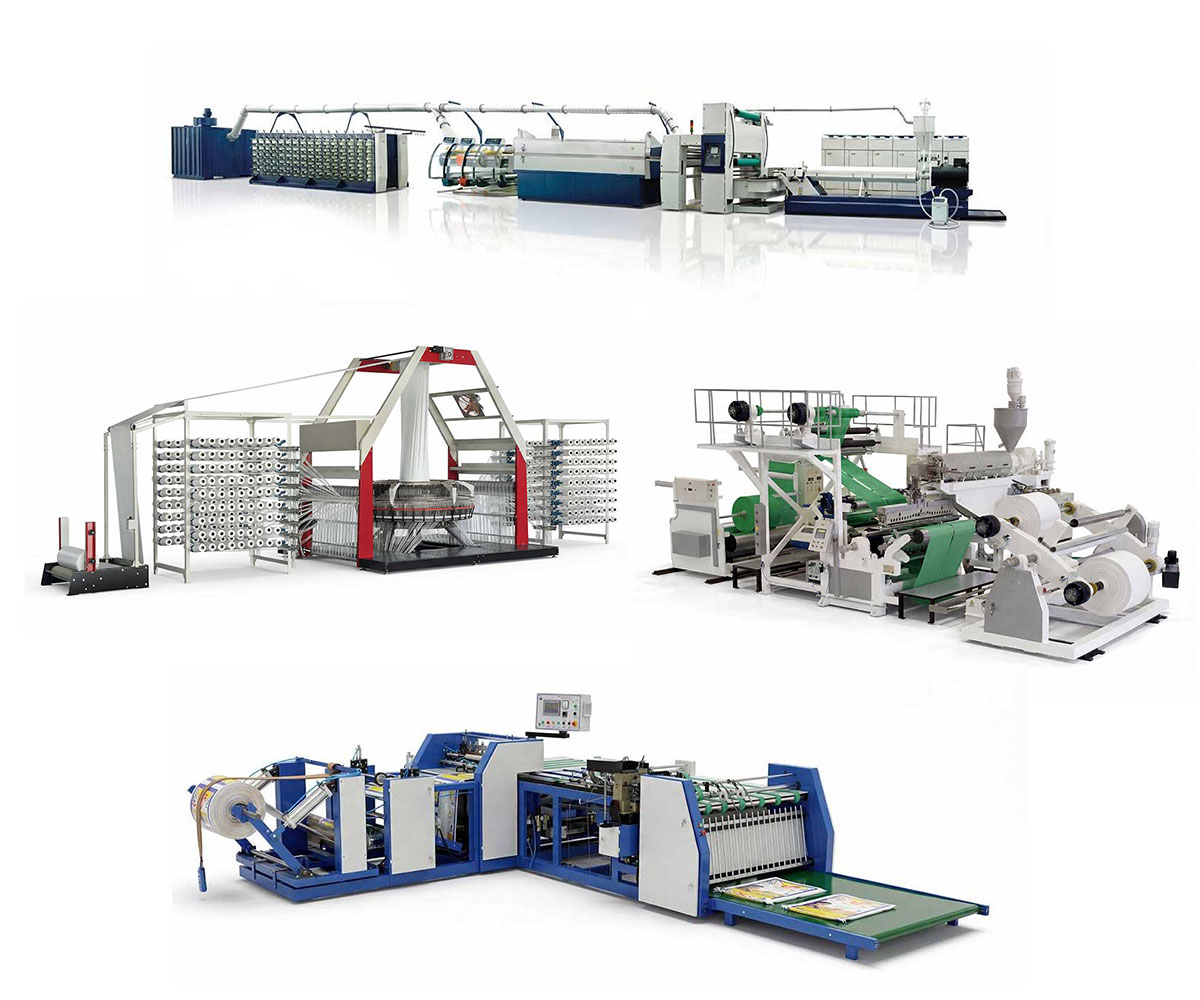

Complete Production Solution

Heaven Extrusions delivers a comprehensive PP / HDPE Raffia Woven Sack Bag Production Line that integrates every stage of the manufacturing process into a single, efficient production system. From processing raw polymer materials to producing finished woven sacks, each machine is engineered to ensure stable operation, high productivity, and consistent product quality. The complete production line is designed to maximize operational efficiency while delivering reliable performance and long service life.

Raffia Tape Stretching Line
The production process begins with the extrusion of premium-quality PP or HDPE granules into flat raffia tapes using a precision-engineered T-Die extrusion system. The extruded tapes then pass through controlled hot-air stretching and annealing processes, which improve molecular orientation to achieve excellent tensile strength, uniform tape width, consistent thickness, and superior mechanical properties required for high-quality woven fabric production.
Automatic Tape Winding System
The stretched tapes are wound automatically onto bobbins using advanced winding systems equipped with magnetic or inverter-controlled tension mechanisms. This ensures accurate bobbin formation, stable winding tension, and smooth tape unwinding during the weaving process, reducing production interruptions and maintaining consistent fabric quality.
High-Speed Circular Weaving Looms
The wound tapes are processed through high-speed circular weaving looms to manufacture tubular or flat woven fabrics suitable for a wide range of industrial applications. The weaving system enables precise control of weave density, fabric GSM, and dimensional stability, producing fabrics with excellent strength, uniform construction, and reliable performance.
Extrusion Coating & Lamination Line
For applications requiring moisture resistance and enhanced surface protection, the woven fabrics can be processed through an Extrusion Coating & Lamination Line. Using LDPE extrusion coating technology, the system produces coated or laminated woven fabrics suitable for packaging applications including cement, fertilizer, food products, chemicals, and other industrial materials requiring improved barrier properties.
Bag Conversion & Finishing Line
The final stage of production includes complete bag conversion and finishing operations. The system performs accurate cutting, bottom folding, stitching, printing alignment, and automatic stacking to manufacture finished woven sacks with precise dimensions, strong seam quality, and a professional appearance suitable for commercial and industrial packaging requirements.

Key Advantages of Heaven Extrusions Raffia Lines

  • Heavy-duty machine design for long service life
  • High output with minimal downtime
  • Energy-efficient extrusion and stretching systems
  • Consistent tape and fabric quality
  • Suitable for PP / HDPE / CaCO₃ / MB / UV raw materials
  • Easy operation and maintenance
  • Export-quality engineering standards
Applications
  • Fertilizer Bags
  • Cement Bags
  • Sugar Bags
  • Tarpaulin for Monsoon Sheds
  • FIBC (Jumbo) Bags
  • Food & Flour Packaging Bags
  • General Purpose Packing Bags
  • Chemical Packaging Bags
  • Rice & Grain Packaging Bags
  • Onion, Potato, Fruit & Vegetable Packaging
  • Bird Feed, Bird Seeds & Animal Feed Bags
